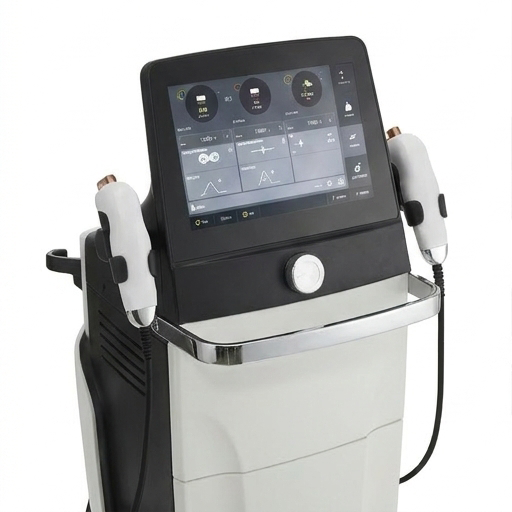

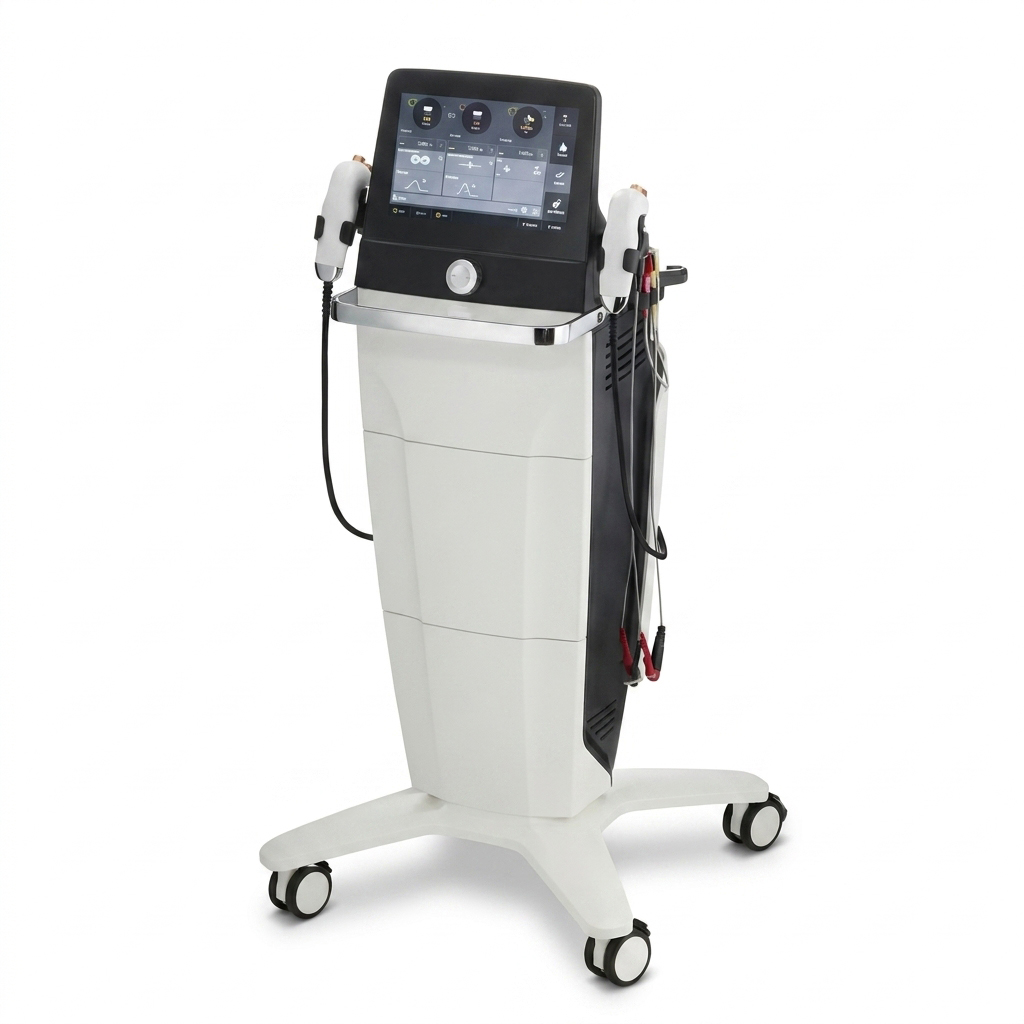

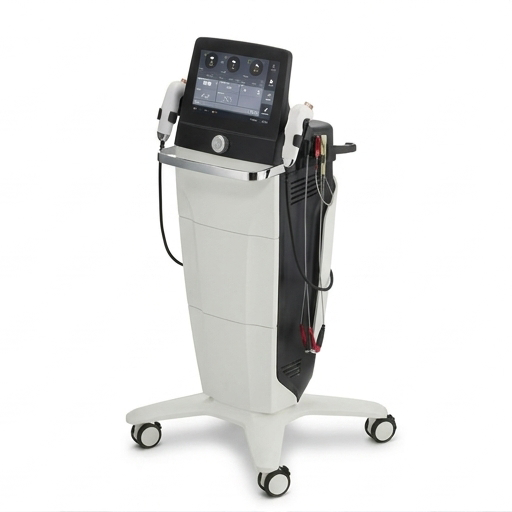

PhySys –
Your Therapy System for Electrotherapy
and Ultrasound Therapy
Two Therapies. One System. Now More Powerful Than Ever
The new PhySys is the most complete and innovative therapy solution from Zimmer MedizinSysteme. It combines electrotherapy and ultrasound therapy in one intelligent, ergonomic, and easy-to-use system. With three independent therapy channels and the option for simultaneous therapy (ultrasound and electrotherapy at the same time), PhySys offers maximum flexibility and efficiency for physiotherapy clinics and rehabilitation centers.
The PhySys covers a wide range of therapeutic goals:
• Pain management: acute, subacute, and chronic conditions
• Muscle stimulation
• Improvement of blood circulation and regeneration
• Scar and tissue healing
• Treatment of bursitis, tendinitis, and epicondylopathies
• Ionophoresis & phonophoresis applications
The combined use of ultrasound and electrotherapy enables targeted, deep-acting treatment —
even for therapy-resistant conditions.
• Electrotherapy: 2 independent channels with 27 current waveforms (including Interference, TENS, Diadynamic, Galvanic, Microcurrent, High Volt, and IG)
• Ultrasound: 1 & 3 MHz, continuous or pulsed mode (0–3 W/cm²)
• 3 therapy channels: 2 for electrotherapy, 1 for ultrasound
• Simultaneous operation: combination of ultrasound and electrostimulation

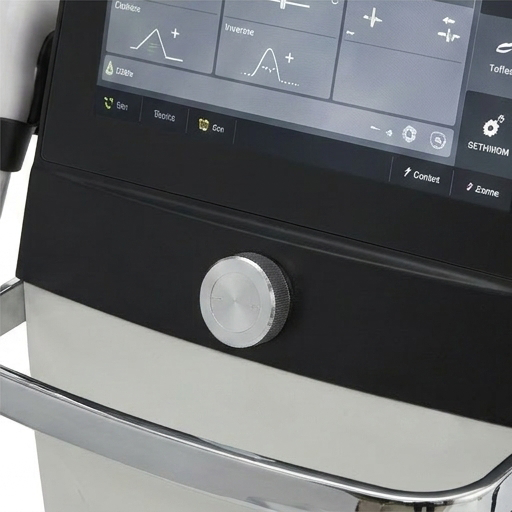

• Display: 12.4″ full-color touchscreen
• Option: vacuum unit with massage effect (Vaco)
• Memory: over 120 therapy programs and favorite slots
Power supply PhySys: 100–240 V~ / 50/60 Hz, 220 V~ / 60 Hz
Power consumption PhySys: max. 150 VA
Power consumption Vaco: max. 60 VA
Protection class: I
Fuses: 2 × T 2.0 A L, 250 V
Applied part: Type BF
Ultrasound
Frequencies: 1 and 3 MHz
Number of channels: 1 channel
Ultrasound mode: continuous and pulsed
Duty cycles: 5%, 10%, 20%, 33%, 50%, 80%
Pulse frequencies: 16 Hz, 48 Hz, and 100 Hz
Intensity: 0–2 W/cm² continuous, 0–3 W/cm² pulsed
Contact area of US applicator (large)
Contact area of US applicator (small)
Electrotherapy
Number of channels: 2, completely independent (intensity and parameters), parallel or alternating
2-channel synchronization
Current modes: CC or CV
Vacuum (only in combination with column)
Maximum operating pressure: 500 mBar
Waste container: 140 ml
Adjustable application settings
Vacuum intensity controlled via touchscreen
Operation modes: continuous or pulsed
Dimensions
PhySys: H 118 × W 35 × D 35 cm
Weight
PhySys with column and Vaco unit: 26 kg
