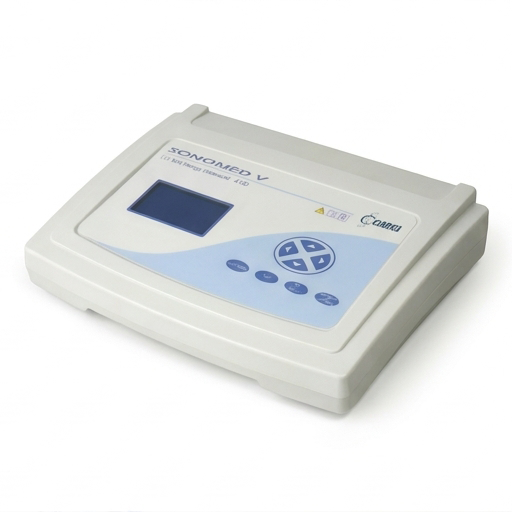

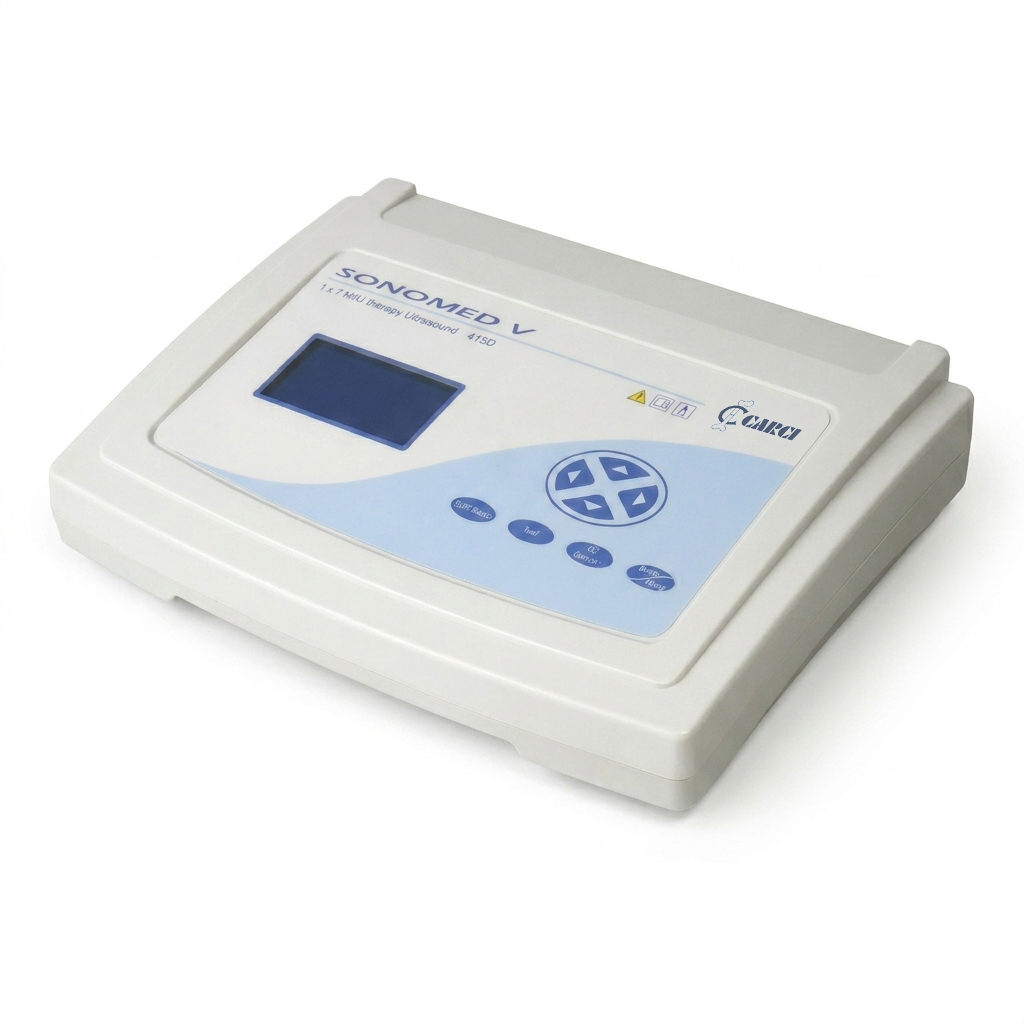

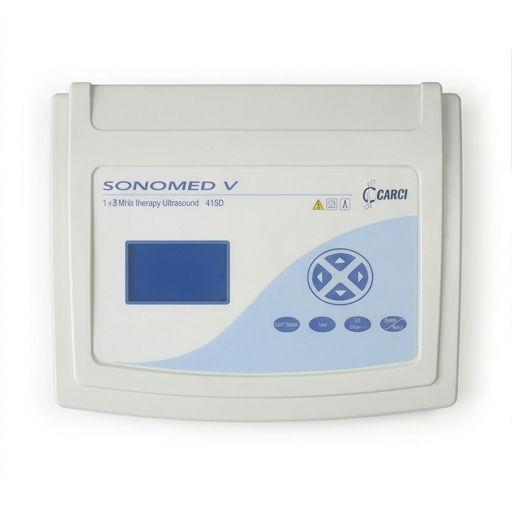

SonoMed

• Waterproof 1 and 3MHz multifrequency anatomical transducer
• Continuous and pulsed emission at the following frequencies:
100 Hz, modulated at 50%, 20% and 10%;
48 Hz, modulated at 20% and 10%;
16 Hz, modulated at 20% and 10%
• Memory for 17 treatment protocols and recording of up to 18 user protocols

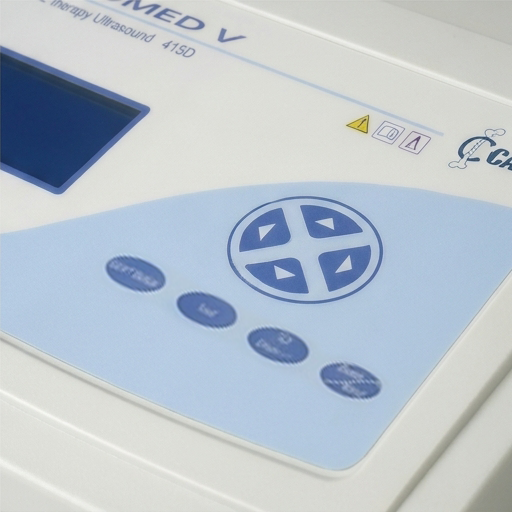

• Panel with soft-touch keypad and blue backlit liquid crystal graphic display
• Transducer overheating protection
• Transducer cable fault detection
• Power supply: 100 to 240Vac 50/60Hz (automatic)
• Maximum consumption: 65 VA
• Fuses: 2.0 A (250V 20AG)
• Timer: 1 to 20 minutes
• Operating frequency: 1 and 3MHz ± 5%
• Operating mode: Continuous
• Mode Operating Mode of the Ultrasound Output: Continuous and Pulsed
• Output control indication: Intensity in W/cm² or Watts
• Maximum effective output power:
Continuous mode: 7.2W ± 20%
Pulsed mode: 10.5W ± 20%
• Maximum effective intensity:
Continuous mode: 2W/cm²
Pulsed mode: 3W/cm²
• Applicator Heads (transducers):
Type: Collimated Operating Frequency: 1.0 and 3MHz ± 5%
Geometric area: 15cm²
Effective radiation area (ERA): 3.6cm² ± 10%
Maximum Intensity Ratio (BNR): < 6.0:1
Water penetration tightness: IPX7
Maximum Acoustic Power: 10 Watts
• Protection against risk of electric shock: Class II
• Degree of protection of the applied part: Type BF
• Protection against water penetration: IPX0
• Compliant with NBR IEC 60601.1, NBR IEC 60601.1.2 and IEC 60601.2.5 standards
• UMDNS™ Classification: 11
