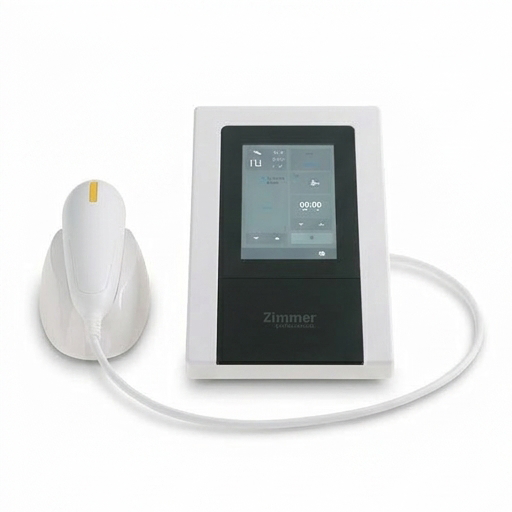

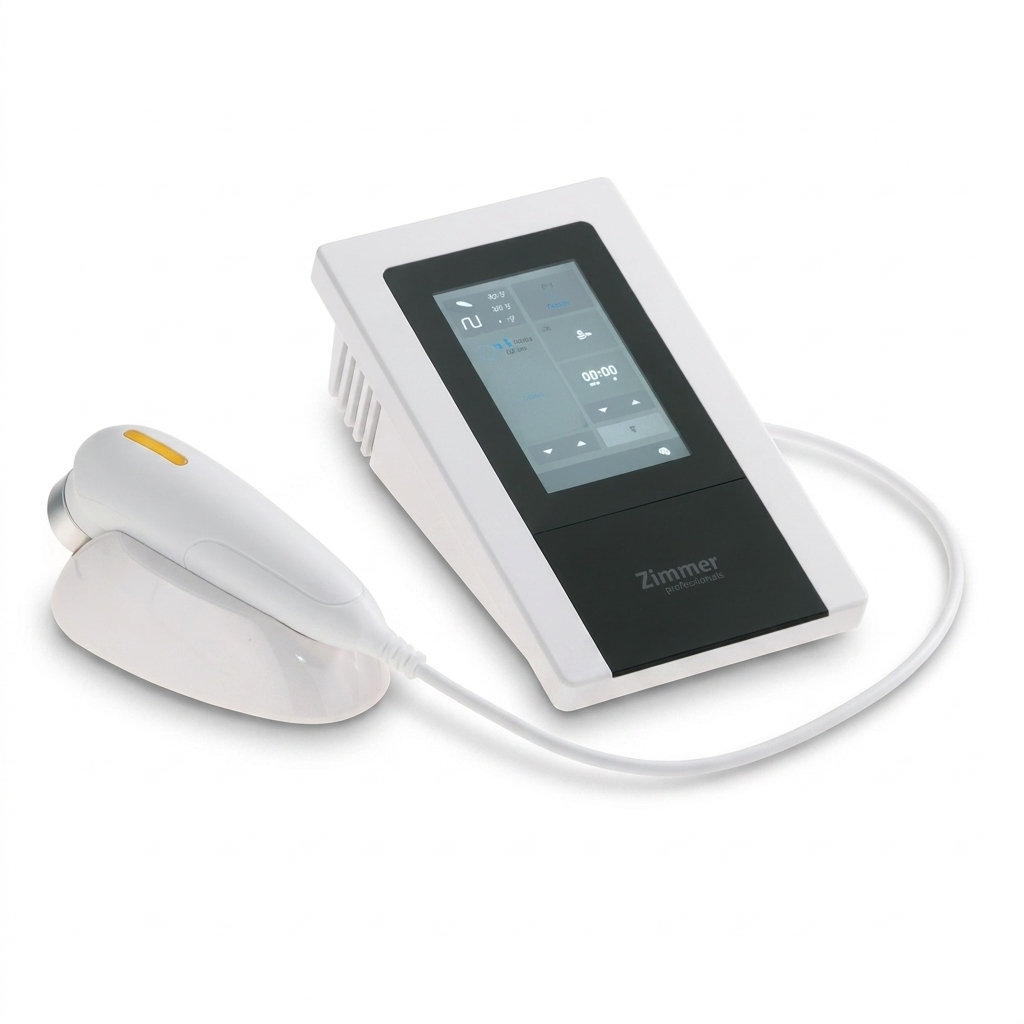

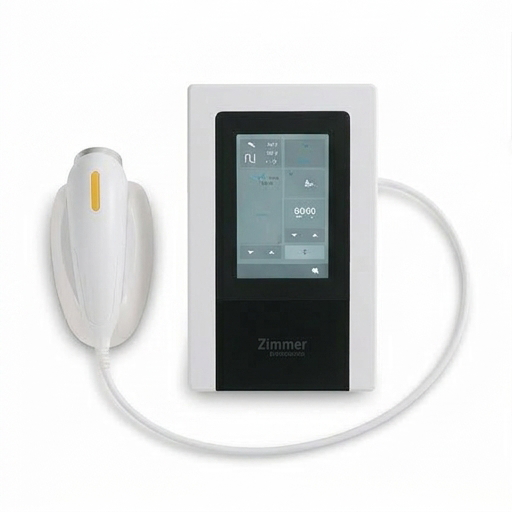

SonoOne
SonoOne
Ultrasound therapy
For many decades, ultrasound therapy has been successfully established as treatment for chronic and degenerative diseases of the musculoskelettal and support system.
• SonoOne - always there
Ergonomic and high-performance. The small, compact system is ideal for mobile use.
• Efficient treatment
1 and 3 MHz, unpulsed and pulsed emission of ultrasound offers every possibility for modern, effective ultrasound therapy.
• Functionality

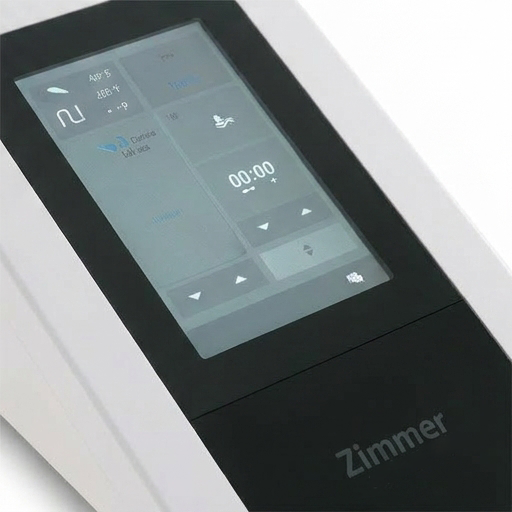

Intuitive, clearly arranged and quick to operate. The colour touch operation makes treatment an enjoyable experience.
Frequency
1 and 3 MHz
Ultrasound types
Continuous ultrasound
Pulsed ultrasound, adjustable pulse frequencies
10 Hz, 20 Hz, 50 Hz, 100 Hz
Duty ratio: 1:1, 1:2, 1:5, 1:10
Transducer surface
5 cm2, AER = 3 cm2
Intensity
Max. 3 W/cm2
Intensity levels
0.1 W/cm² to 3 W/cm² in intervals of 0.1 W/cm²
Number of ultrasound transducer connections
1
Dimensions (LxWxH) / Weight
23,8 cm x 13,8 cm x 9,5 cm / 1 kg
